Product Details:
Payment & Shipping Terms:
|

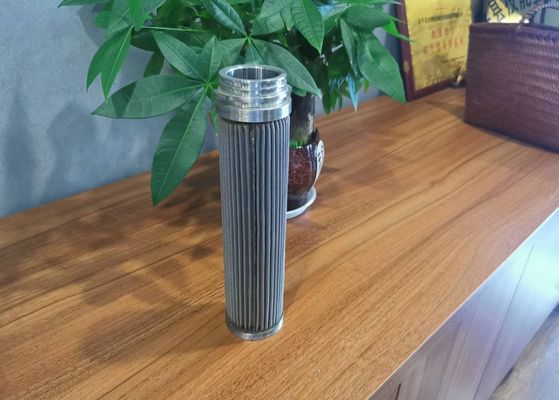

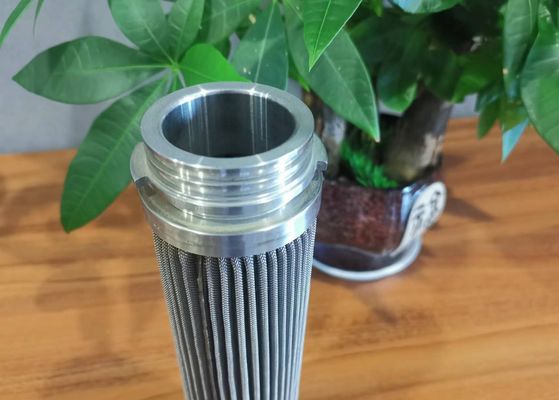

| Product Name: | Perforated Plate Pipe Filter Element | Material: | SS304 |
|---|---|---|---|
| Application: | Filters，Decorative | Weight: | Customized |
| Certification: | ISO9001 | Filter Type: | Liquids Filtration |
| Filtration Accuracy: | 10 Micron | Length: | Customized |
| Diameter: | Customized | Keyword: | High Permeability |
| High Light: | perforated plate 10 micron filter element,high permeability 10 micron filter element,10 micron stainless steel filter element |
||
This product is design for specially High flow rate, High dirt holding capacity and also Design with High Temperature capacity.
The wire mesh is design is Plain Type, Plated Type with single, Double and Multy layer.. And this cartridge is also available with SS Sintered Fiber layer.
| Product Name | 0.2 5 10 micron 20" stainless steel titanium metal high flow sintering pleated water filter cartridge |
| Material | Stainless steel |
| Filter media |
Filter element adopts many kinds of materials, such as glass fiber, wood pulp filter paper , stainless steel sinter fiber web and stainless steel wire woven. |
| Nominal filtration rating | 2μ ~ 80μ |
| Operating pressure | 21bar-210bar (Liquid Filtration) |
| Brand | KRD |
| O-ring material | Viton, NBR |
|
Feature
|
|
| Specification |
|
|
|
|
|
Operating parameters |
|
|
Typical water flow rate (10 '') |
|
|
Typical Applications
|
Steam filtration Decarbonization of high viscosity liquid filtration Removing impuriteis in Petrochemical industry impurities Filtering Strong polar solvent filtration Highly corrosive liquid and gas purification Liquid or gas in high temperature and pressure |
1) Uniform structure, narrow pore size distribution and high separation efficiency.
2) High porosity, low filtration resistance and high permeation efficiency.
3) High temperature, generally about 280 degrees in normal use.
4) Chemical stability, acid corrosion, with antioxidant properties.
5) No particles off, do not make the liquid form a secondary pollution, in line with food hygiene and pharmaceutical GHP
requirements.
6) Mechanical properties, and can be filter press filter, simple operation.
7) Low pressure, small footprint, large flow.
8) Strong anti-microbial capacity, does not work with micro-organisms.
9) Forming process is good, the whole no welding length of up to 1000 mm.
10) Can be online regeneration, easy to clean, long life (usually several times the membrane filter).
Including a extra 200μm filter element for free. 40μm filter will capture most particulates, it's best suited for use on Municipal (tap) or City water. If using it on Well, Lake feedwater, you can replace it with the 200μm filter element. Otherwise it may require more frequent flushing to remove the build-up of particulates due to the fine filter mesh used.
Q1. How can we get the quotation of flter cartridges
A: Kindly please let us know the specifications, such as the material, length, micron, adapter, apply in which industry.
Q2. How about your delivery time?
A: Generally, it will take 20 to 25 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order. and if the item was non standard, we have to consider extra 10-15days for tooling / mould made.
Q3. Can you produce according to the samples or drawings?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q4. How about tooling Charge?
A: Tooling charge only charge once when first order, all future orders would not charge again even tooling repair or under maintance.
