Product Details:
Payment & Shipping Terms:
|
| Product Name: | Liquid Filter Bags | Material: | PP |
|---|---|---|---|
| Usage:: | Liquid Filter | Wieght:: | 0.3 Kg |
| Wire Diameter: | 4.5 Inches | Keyword: | Nylon Filter Net |
| Length: | Customized | Filtration Accuracy: | 0.2-300 Micron |
| Treatment: | Heat-setting, Calendaring, Hydrophobic | Application: | Hotels, Garment Shops, Building Material Shops, |
| High Light: | 300 micron pp filter bag,aquarium pp filter bag,0.2u polypropylene mesh filter bag |
||

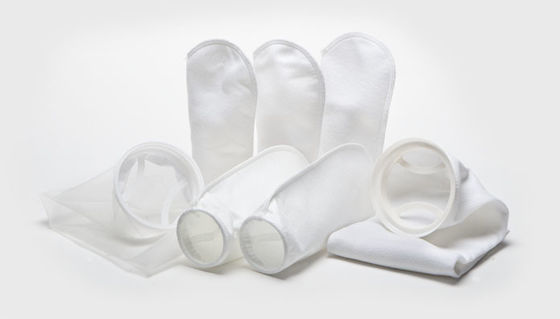

The JiNeng Company's nylon multifilament mesh liquid filter bags feature an economical high flow/low pressure drop media for surface retention filtration with a 100 to 1500 micron rating at temperature ratings up to 350° F. Mesh filter bags provide good removal efficiency of non-deformable contaminants and can be reused. Configurable options for these nylon multfilament mesh liquid filter bags include: handle, auto seams, reverse collar, ring style such as galvanized steel, stainless steel, polypropylene, and more.
| Product Name | Liquid Filter Bags | ||
| Material Available | Nylon (NMO) | Polyester (PE) | Polypropylene (PP) |
| Maximum Operating Temperature | 275-300° F (135-149° C) | 275-325° F (135-162° C) | 200-220° F (93-104° C) |
|
Micron Rating (um) |
25, 50, 100, 150, 200, 300, 400, 500, 600, or 25-2000um | 0.5, 1, 3, 5, 10, 25, 50, 75, 100, 125, 150, 200, 250, 300 | 0.5, 1, 3, 5, 10, 25, 50, 75, 100,125, 150, 200, 250, 300 |
|
Size |
1 #: 7" x 16" (17.78 cm x 40.64 cm) 2 #: 7" x 32" (17.78 cm x 81.28 cm) 3 #: 4" x 8.25" (10.16 cm x 20.96 cm) 4 #: 4" x 14" (10.16 cm x 35.56 cm) 5 #: 6 " x 22" (15.24 cm x 55.88 cm) Customized size |
||
|
Filter Bag Area(m²) / Filter Bag Volume (Liter) |
1#: 0.19 m² / 7.9 Liter 2#: 0.41 m² / 17.3 Liter 3#: 0.05 m² / 1.4 Liter 4#: 0.09 m² / 2.5 Liter 5#: 0.22 m² / 8.1 Liter |
||
| Collar Ring |
Polypropylene ring/Polyester ring/Galvanized steel ring/ Stainless steel ring/Rope |
||
| Remarks |
OEM: support Customized item: support |
||
Advantages of Filter bag
Physical Specifications
Handle: YES
Seal Material: NONE
Type of Adhesive: NONE
Type of End cap: PLATED STEEL
Center Tube: NONE
Type of Media: POLYESTER
Filter Area: SQ.IN.
Plating: NONE
Outer Jacket: NONE - NONE
Configuration: SINGLE OPEN END
