Water Oil Industrial Filtration Woven Wire Wire Filter Mesh

Filter Wire Mesh Introduction

Wire mesh filter has a greater number of finer wires in the shute direction and is woven in both plain and twill weave patters. It is normally rated by the size particle it will retain, either as the absolute micron rating or the nominal micron rating, expressed in microns.

We normally use stainless steel woven mesh 304, 304L, 316, 316L as filter media in the patterns of plain, twilled, dutch weave to achieve full range of aperture and properties.

Filter Wire Mesh Specification

Filter Wire Mesh According to the weaving classification

Plain weave, twilled weave, plain Dutch weave, stainless steel wire mesh, twilled Dutch weave plain. Twill weave, plain Dutch weave stainless steel specification 1-400 mesh, twill weave specifications 12 yard to 635 yard, and stainless steel dense mesh weaving specifications 12 yard x64-325 mesh x2300 x3500 yard to 400 yard x2800-435 mesh for the closest (filtering precision can reach 8 microns) according to different environment, we use different woven stainless steel wire mesh.In special environment, different materials, different weaving technology and manufacturing methods are adopted.I plant in 2014 aunched the use of high acid stainless steel mesh, high temperature resistant stainless steel mesh temperature can reach 3000 Degrees Celsius, friction resistant stainless steel mesh filter in solid particles, plastic particles, color master long use time, long life of low-carbon stainless steel mesh 304A, 316A standard stainless steel series.

Filter Wire Mesh Material

SUS304, 304L, SUS316,SUS316L, 310, 310S, SUS302, 321, 430, silver wire mesh, titanium wire mesh, nickel wire mesh (99.5% purity), etc., in different environments, to add different rare metal wire.

Special customization requirements

The minimum filtration accuracy of stainless steel dense pattern mesh is generally 2-3 microns.

We can design and manufacture various types of products according to the needs of customers, and also undertake processing with supplied materials.

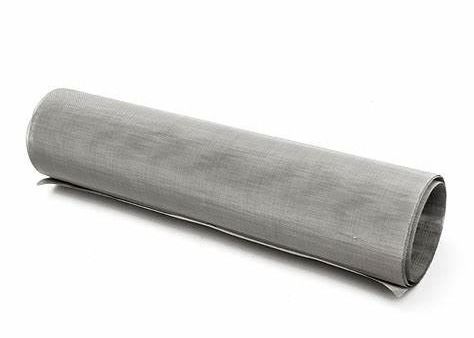

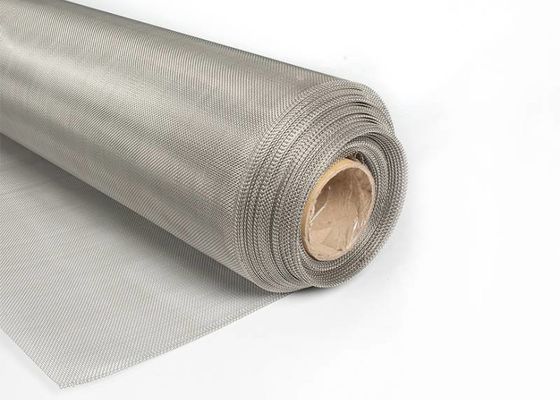

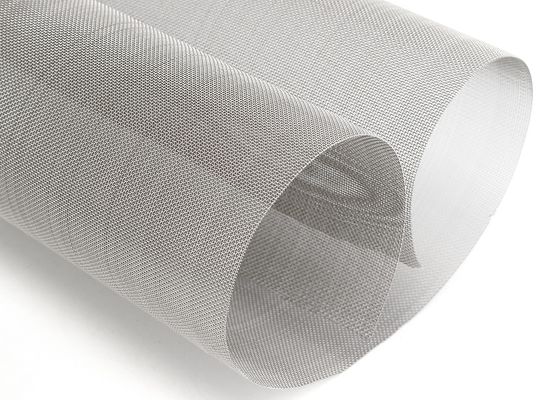

Product Show of Filter Wire Mesh
