Product Details:
Payment & Shipping Terms:
|
| Product Name: | Stainless Steel 304/316 1-160t /H Cartridge Filter Housing | Material: | 316L,SUS304,Stainless Steel 304/316 |
|---|---|---|---|
| Application: | Water Purification,bag Filter Housing,Filtration,Food Grade Or Industrial Application,drinking Water System | Diameter: | 230-1000mm,450mm,167~1000mm,90mm |
| Design Temperature: | 20℃~150℃,normal Temperature,100℃,5 ℃ -100 ℃ | Flow Rate: | 1-160T /H |
| Function: | Filtering Suspended Matter,Water Filter | ||
| High Light: | desalination precision filter cartridge housing,cartridge housing 20t/h,desalination precision cartridge filter housing |
||

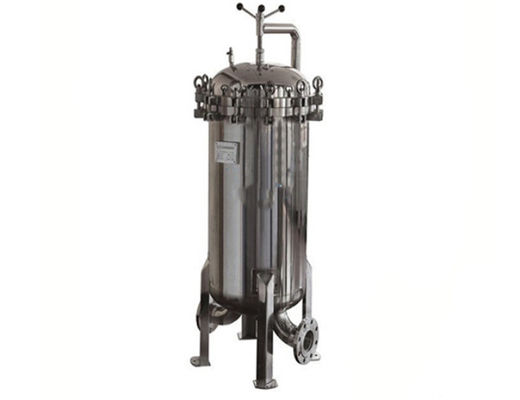

Bag filter is a kind of multi-purpose filter equipment with novel structure, small volume, simple and flexible operation, energy saving, high efficiency, airtight work and strong applicability.Bag filter is a new type of filter system.The bag filter is supported by the metal mesh basket inside the filter bag, the liquid flows into the inlet, the filter bag is filtered out from the outlet, the impurities are intercepted in the filter bag, and can continue to be used after replacing the filter bag.
| Model |
A (mm) |
B (mm) |
C (mm) |
D (mm) |
In/Out |
|
BN7-10" |
275 |
355 |
89 |
1/2" 1" |
11/2"-2" |
|
BN7-20" |
525 |
605 |
89 |
3/4" 1" |
11/2"-2" |
|
BN7-30" |
775 |
855 |
89 |
1" |
11/2"-2" |
|
BN7-40" |
1025 |
1105 |
89 |
1" |
11/2"-2" |
Application
|
Food&Beverage Industries
|
Bear&Wine&Milk |
Electronics Industries |
|
Pharmaceutical Industry
|
Chemical Industries |
Water Treatment |

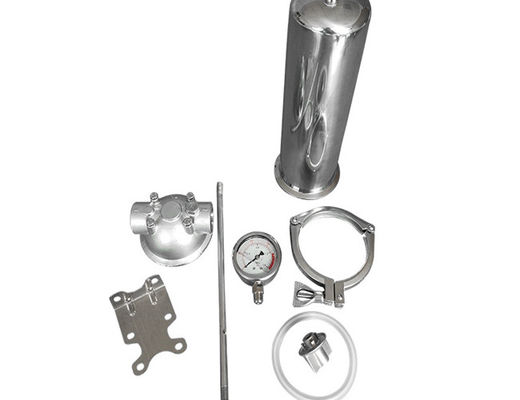

Bag filter is a kind of pressure type filter, filter cylinder, cylinder lid, and main quick opening mechanism, stainless steel filter bag to strengthen network main parts, such as the filtrate by filter shell side inlet tube into the filter bag, filter bag itself is a device in strengthening a basket with netting on top, liquid penetrant fineness required for grades of filter bag that can obtain qualified filtrate impurity particles blocked by the filter bag.
The machine is very convenient to change the filter bag, filtering basically no material consumption.
