Product Details:
Payment & Shipping Terms:
|
| Width:: | Customize | Thickness:: | Customize |
|---|---|---|---|
| Micron Rate: | 0.1 To 300 Micron | Layers: | 1 To 5 Layers |
| Working Pressure:: | 0.1 To 30Mpa | Length:: | Customize, OEM, 5", 10", 20", 30", 40", 50'', 60'' |
| High Light: | microporous sintered metal filter elements,304 sintered metal filter elements,30Mpa sintered metal filter elements |
||

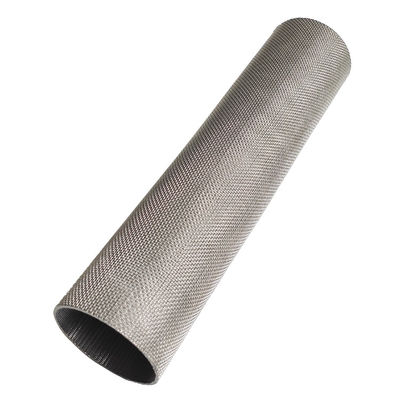

Sintered Metal FilterMicroporous Sintered Porous Ceramic Frit Disk Filter Disc Filter Air Ejector Gas Diffuser Water:
Sintered Metal Filter Introduce:
Application field:
1. Filtration and recovery of catalyst
2. High temperature flue gas purification in petrochemical industry
3. Decarburization filtration, impurity removal filtration and ultra-fine crystal recovery in pharmaceutical and chemical industry
4. Dust and tail gas purification in gas-solid separation
5. High temperature steam filtration
Performance Characteristics:
Uniform structure, high porosity, good mechanical properties, high compressive strength, high temperature resistance, no particle shedding, online regeneration
Sintered Metal Filter Main Parameters:
| Filtration accuracy: | 0.45um-100um |
| Porosity: | 28-45% |
| Permeability coefficient: | 1.0*10-5-7*10-3L/cm2·min·Pa |
| Compressive strength: | 2.5-6mpa |
| Temperature resistance: | 500. C (wet state) |
| Large working pressure difference: | 1Mpa |
Sintered Metal Filter Technical Advantages:
Developed micro porous metal filter material physical properties and detection methods: company technical personnel through the development, research and development of the screening method and microscope method, through the method of air, nitrogen adsorption method and so on a variety of solutions for titanium microporous filter material composition, particle shape, particle size and specific surface area, true density, physical properties such as lattice state testing, the effective control of product quality.
Sintered Metal Filter Property:
| Width: | customize |
| Thickness: | customize |
| Micron Rate | 0.1 to 300 micron |
| Layers | 1 to 5 layers |
| Working pressure: | 0.1 to 30Mpa |
| Length: | customize, OEM, 5", 10", 20", 30", 40", 50'', 60'' |
The Product Shipping:
Sample Showroom:
